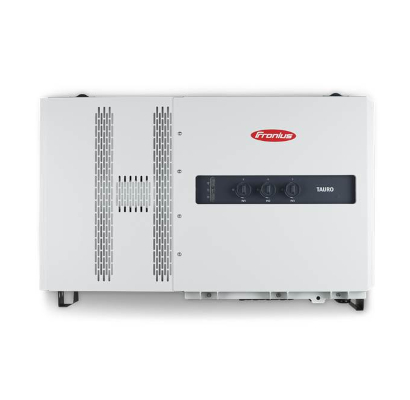

Product information "Fronius Tauro 50-3-P inverter"
• Dimensions (HxWxD): 755 x 1109 x 346 mm without wall mounting
• Weight: 92 kg
• Indoor and outdoor installation
• Number of MPP trackers: 3
• Max. input current (Idc max): 134 A
• Max. short circuit current of module field (PV1/PV2/PV3): 36/36/72 A
• DC input voltage range (Udc start): 200-1000 V
• Startup voltage (Udc start): 200 V
• Usable MPP voltage range (Umpp min - Umpp max): 400-870 V
• Number of DC connections (PC1/PV2/PV3): 1/1/1
• Max. PV generator power (Pdc max): 75 kW peak
• AC nominal power (Pac,r): 50,000 W
• Max. output power: 50,000 W
• Degree of protection: IP65 Protection class: 1 night consumption: <16 W
For specifications, please refer to the current datasheet
