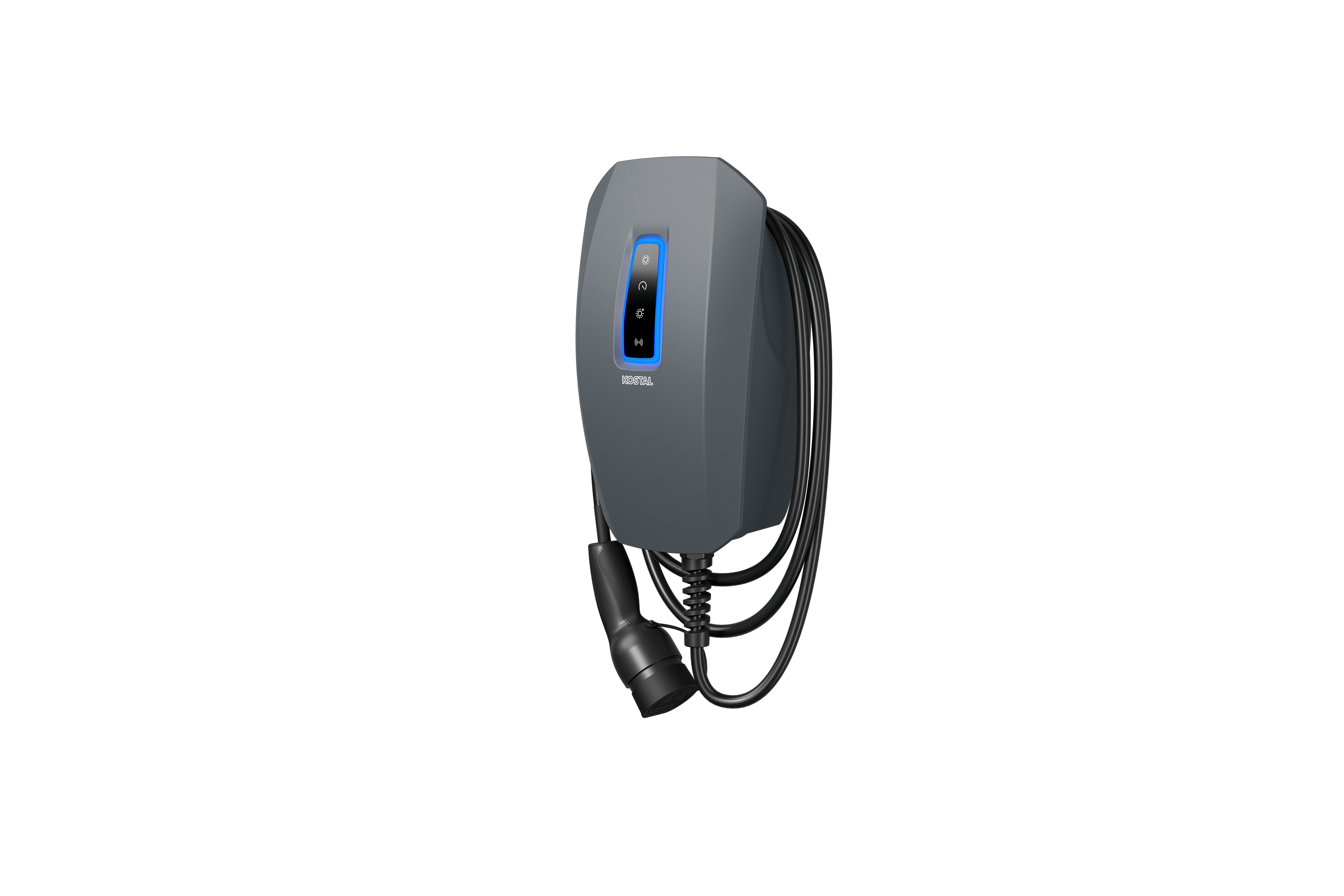

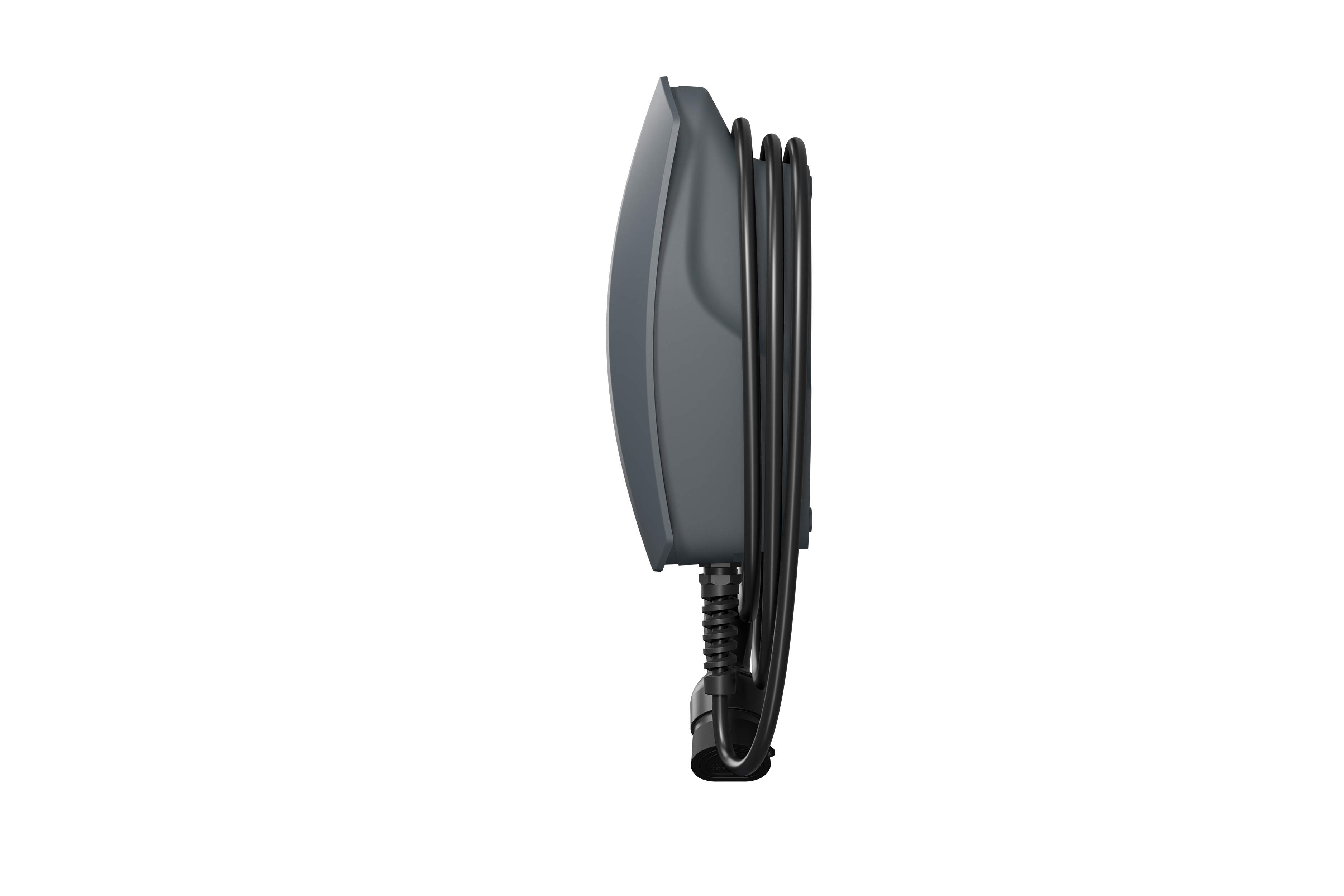

KOSTAL ENECTOR AC 3.7/11 kW G2 MID Wallbox
The prices are only visible to business customers and are only displayed after successful registration.
In transit
| AC phases | 3 |
|---|---|
| Product Warranty | 5 years |
| Power Output | 11 kW |
| Energy Meter | MID counter |
| Intelligent charging | Yes |
| Connector Type | Cable |
| Charging Points | 1 |
Specification see current data sheet.
Price for full pallets on request.
Price for larger quantities on request –inquire now.
- Up to 11 kW charging power (single- or three-phase)
- Integrated MID-certified energy meter for compliant energy measurement
- 7.5 m permanently attached Type 2 charging cable
- PV-optimized charging with PLENTICORE G3 or KSEM
- Integrated LAN, Wi-Fi and RFID for convenient operation
The KOSTAL ENECTOR AC 3.7/11 kW G2 MID Wallbox combines intelligent AC charging with legally compliant energy metering. Delivering up to 11 kW of charging power and equipped with a permanently connected 7.5 m Type 2 charging cable, it is ideally suited for residential, commercial and semi-public charging applications. The integrated MID-certified energy meter enables accurate and compliant recording of charging energy, making the wallbox particularly suitable for billing and energy management applications. When connected to the KOSTAL PLENTICORE G3 inverter or the KOSTAL Smart Energy Meter (KSEM), surplus PV energy can be used efficiently to charge electric vehicles.
Smart Charging with Integrated MID Meter
In addition to its integrated LAN, Wi-Fi and RFID functionality, the ENECTOR G2 MID offers a user-friendly web interface for monitoring charging sessions, exporting charging data and managing users. Features such as automatic phase switching, DC residual current detection, load management functions and EEBUS as well as §14a readiness ensure safe and future-proof operation. The compact IP54-rated housing is designed for both indoor and outdoor installation, making the ENECTOR G2 MID an ideal charging solution wherever intelligent energy management and certified energy metering are required.
Downloads
Datenblatt_KOSTAL_ENECTOR_G2_-_G2_MID_de
- Up to 11 kW charging power (single- or three-phase)
- Integrated MID-certified energy meter for compliant energy measurement
- 7.5 m permanently attached Type 2 charging cable
- PV-optimized charging with PLENTICORE G3 or KSEM
- Integrated LAN, Wi-Fi and RFID for convenient operation
The KOSTAL ENECTOR AC 3.7/11 kW G2 MID Wallbox combines intelligent AC charging with legally compliant energy metering. Delivering up to 11 kW of charging power and equipped with a permanently connected 7.5 m Type 2 charging cable, it is ideally suited for residential, commercial and semi-public charging applications. The integrated MID-certified energy meter enables accurate and compliant recording of charging energy, making the wallbox particularly suitable for billing and energy management applications. When connected to the KOSTAL PLENTICORE G3 inverter or the KOSTAL Smart Energy Meter (KSEM), surplus PV energy can be used efficiently to charge electric vehicles.
Smart Charging with Integrated MID Meter
In addition to its integrated LAN, Wi-Fi and RFID functionality, the ENECTOR G2 MID offers a user-friendly web interface for monitoring charging sessions, exporting charging data and managing users. Features such as automatic phase switching, DC residual current detection, load management functions and EEBUS as well as §14a readiness ensure safe and future-proof operation. The compact IP54-rated housing is designed for both indoor and outdoor installation, making the ENECTOR G2 MID an ideal charging solution wherever intelligent energy management and certified energy metering are required.
