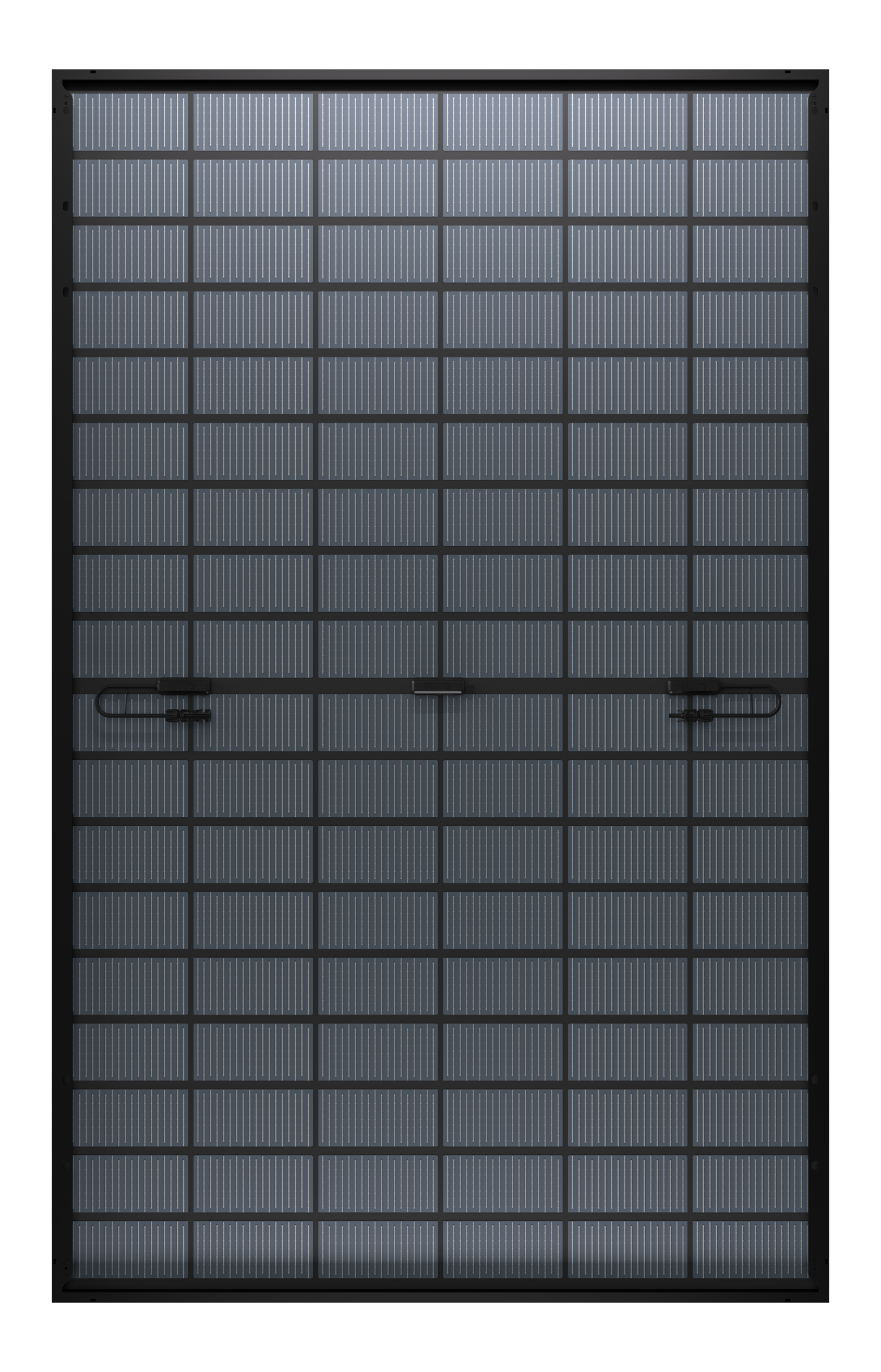

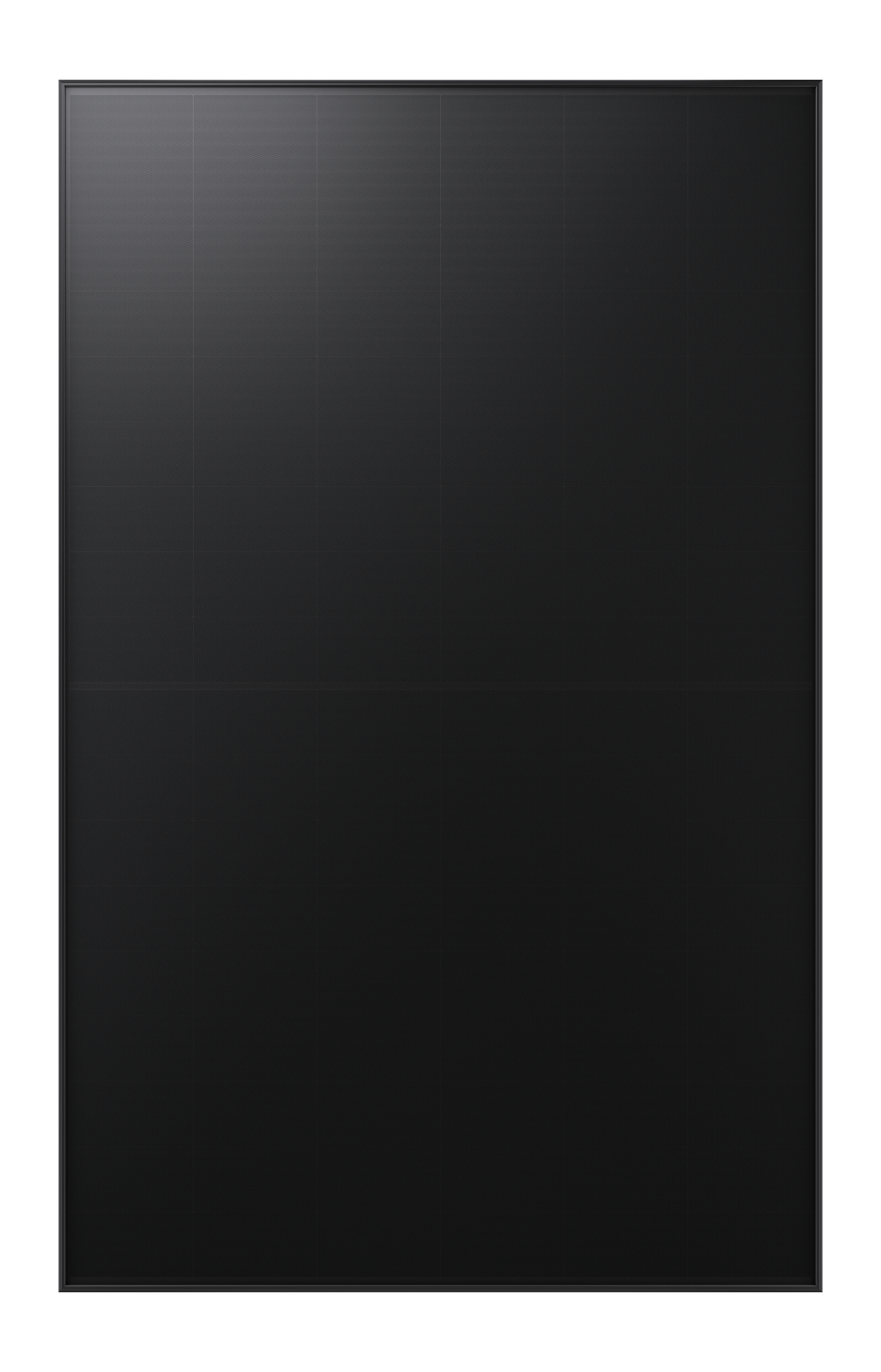

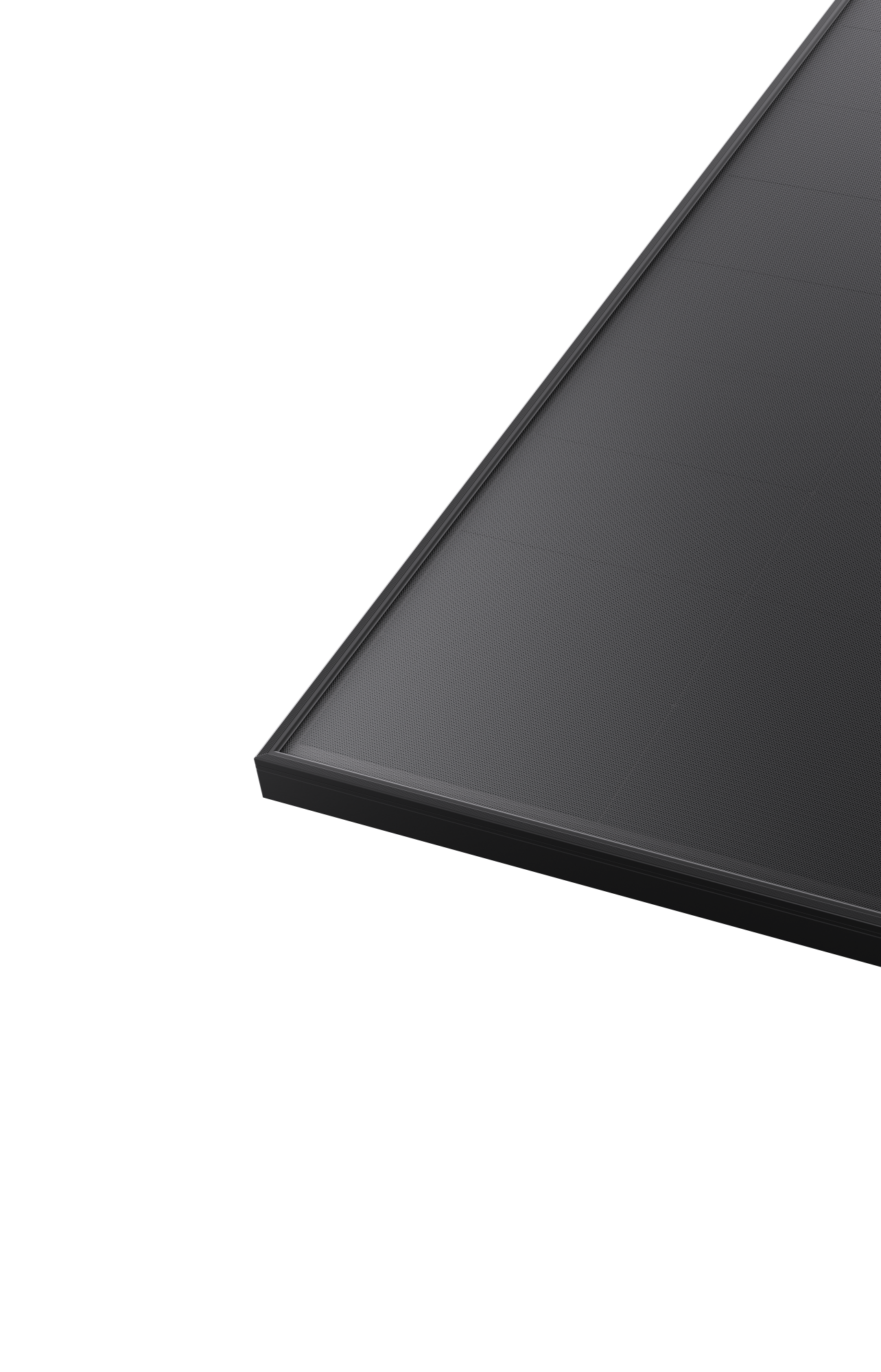

LONGi EcoLife X10 LR7-54HVBB 480 Watt glass/glass full black
The prices are only visible to business customers and are only displayed after successful registration.
In transit
| Efficiency | 23,5% |
|---|---|
| ISC in A | 14,98 |
| Number of cells | 108 |
| Packaging units per container | 888 |
| Packaging units per pallet | 37 Stk. |
| Solar cell technology | HPBC Cell Technology |
| Temperature coefficient Pmax, %/°C | -0,260% |
| VOC in V | 40,53 |
| Product Warranty | 30 years |
| Power Output | 480 Watt |
| Dimensions (L x W x H) in mm | 1800x1134x30 |
| Frame Color | black |
| Performance Warranty | 30 years |
| Module Type | Glass-glass |
| Weight | 23,5 kg |
Specification see current data sheet.
Price for full pallets on request.
Price for larger quantities on request –inquire now.
- 480 Wp rated power with up to 23.5% module efficiency
- State-of-the-art HPBC 2.0 cell technology for maximum energy yield
- Glass-glass construction with 30-year product and performance warranty
- Very low degradation: max. 1% in the first year, then 0.35% per year
- Elegant full-black design with no visible grid lines
- High mechanical load capacity up to 5,400 Pa (snow)
The LONGi EcoLife X10 LR7-54HVBB is a high-quality glass-glass photovoltaic module with a rated power of 480 Wp and a module efficiency of up to 23.5%. Thanks to innovative HPBC 2.0 cell technology, the module delivers high energy yields and impresses with excellent long-term stability. The modern full-black design without visible busbars gives it a particularly sleek appearance, making it the ideal choice for premium residential buildings as well as high-end private and commercial PV systems.
Technology & Applications
The solar module uses modern back-contact cells with HPBC 2.0 technology. Because the contacts are located on the back, more light reaches the cells. This means higher yields, even with partial shading or high temperatures.
The sturdy glass-glass construction reliably protects the module against moisture, hail, snow and wind. This makes the LONGi EcoLife X10 LR7-54HVBB 480 W ideal for long-lasting rooftop systems where performance, appearance and reliability matter.
Manufacturer:
LONGi is one of the world's leading manufacturers of monocrystalline photovoltaic modules and stands for top efficiency, innovative cell technologies and durable quality products for residential and commercial solar installations.
Find out more about the brand on our manufacturer page.
Downloads
Datenblatt LONGi_LR7-54HVBB_480_de
